HBGB 32 X 4.5mm Stainless Steel Floor Serrated Metal Grating ISO14001

Name: HBGB 32 X 45mm Stainless Steel Floor Serrated Metal Grating ISO14001
Brand: HBGB
Price: 1 USD

Quality HBGB 32 X 4.5mm Stainless Steel Floor Serrated Metal Grating ISO14001 for sale

Brand Name : HBGB

Model Number : GB-006

Certification : ISO 9001

Place of Origin : China

MOQ : 100pcs

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 2000 pcs per day

Delivery Time : 15-25 days

Packaging Details : Steel Pallet or customized

Product namee : Steel grating

Raw material : Carbon Steel/stainless steel

Grating type : Serrated type

Finishing : hot dipped galvanized or powder coated

Flat bar pitch : 30mm / 40mm / 60mm

Bearing bar type : F, I, S, IS type

Bearing bar : 25x2,25x3,25x4,25x4.5,25x5,30x3,30x4,30x4.5,30x5,32x5,40x5,50x5 mm etc

Bearing bar pitch : 12.5, 15, 20, 30, 30.6, 32.5, 34, 34.8, 35.3, 40, 60, 80mm

Special pitch : 41mmx50mm, 30mmx 50mm, 33mmx 100mm, 33mmx50mm,33mmx38mm, 34mm x 100mm, 34mmx50mm,34mm x 38mm

Application : metal building material,fences,ditch cover,steel ladder,stair tread

Contact Now

32 X 4.5 Mm Serrated Type Bar Galvanized Platform Floor Steel Grating

Walkway steel grating introduction:

Steel plate by the bearing flat steel bar in accordance with certain spacing and cross arrangement,the welded info a metal products with square lattice in the middle;a steel lattice plate is mainly used to make steel structure platform board,ditch cover plate,steel ladder step plate,building ceiling etc.Lattice steel plate applied to alloy building materials,power station,boiler,shipbuilding,petrochemical,chemical and general industrial buildings, municipal construction and other industrial, with light ventilation,skid resistance,strong bearing capacity.beautiful and durable,easy to clean,convenient installation and other advantages.

HBGB 32 X 4.5mm Stainless Steel Floor Serrated Metal Grating ISO14001

Galvanized serrated bar grating details:

serrated hot dip galvanized grating
specification:253/30/100
Twisted cross bar:6*6mm .pitch: 100mm
size:3m*1m

HBGB 32 X 4.5mm Stainless Steel Floor Serrated Metal Grating ISO14001

Galvanized serrated bar grating size:

1. Size: 1000mm L x 660mm W/pc, closed ends
2. Flat bar: 40x6mm, 25mm spacing from center to center
3. Round bar (2nos.): Ø20mm slot through flat bar, fully welding at the ending of

the flat bar;

4. Finish: Hot dipped galvanized.

Galvanized serrated bar grating surface specifications:

Product Name	Serrated Steel Grating
Material	Low Carbon Steel/Stainless Steel
Grade	CN:Q235,Q345, US:A36,UK:43A
Standard	CN: YB/T4001-1998, US: ANSI/NAAMM, UK: BS4592-1987, AUS1657-1988, JJS
Certification	CE, GOST, ISO9001, ISO14001, HSE
Bearing bar size	20X5, 25X3, 25X4, 25X5, 30X3, 30X4, 30X5, 32X3, 32X5, 40X5, 50X4... 75X8, 100X8mm, etc
Bearing bar pitch	20,25,30,32.5,34.3,40,50,60,62,65mm
Bearing bar type	Plain, Serrated (tooth-like), I bar (I section), Serrated-I
Cross bar size	5X5, 6X6, 8X8mm (twisted bar)/5, 6, 8mm ( round bar)
Cross bar pitch	40, 50, 60, 65, 76, 100, 101.6, 120, 130mm, etc.
Panel size	3x20ft,3x24ft,3x30ft,5800x1000,6096x1000,7315x1000, as request
Surface treatment	Untreated, hot DIP galvanized, cold DIP galvanized, painted, powder coated, pickling, electrolytic polishing, or as customers’ requirement.
Galvanization Standard	CN: GB/T13912, US: ASTM (A123), UK: BS729
Color	Silver/Black
Application	petroleum and chemical, port, power, transportation, papermaking, medicine, steel and iron, food, municipality, real estate, manufacturing

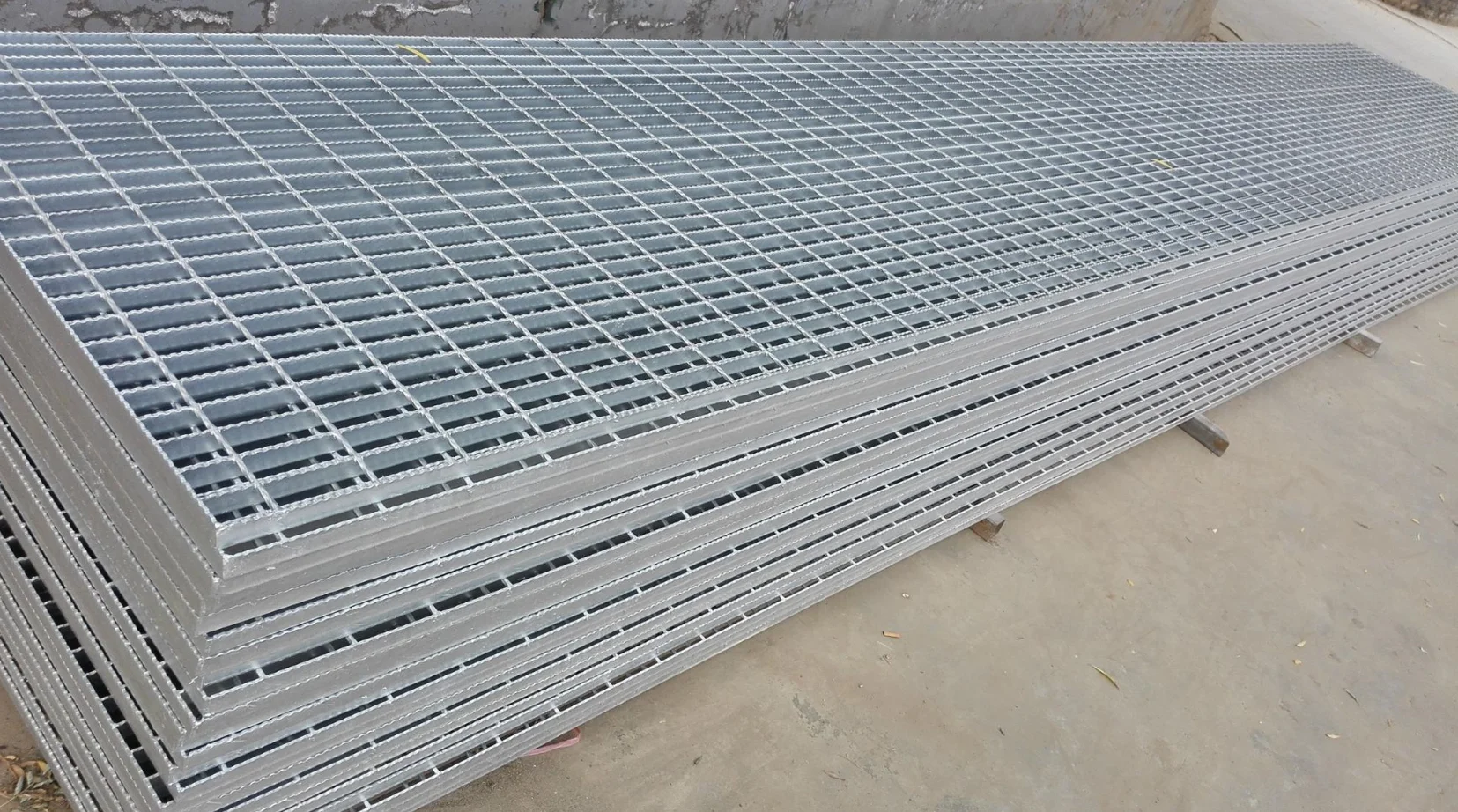

Product pictures:

Applications of galvanized serrated steel bar grating:

* Anti slip bridge decking
* Bridge walkway
* Drainage systems
* Fire truck platforms
* Mass transit platforms
* Marine and ship decks
* Mezzanines
* Non-slip walkways
* Non-skid pit covers
* Slip resistant platforms
* General Industries
* Truck platforms
* Vault covers
* Wet Decks
* Wastewater treatment plant grating
* Stair treads

HBGB 32 X 4.5mm Stainless Steel Floor Serrated Metal Grating ISO14001
