Building Material Iron Plate Galvanized Expanded Metal Mesh Diamond Hole

Name: Building Material Iron Plate Galvanized Expanded Metal Mesh Diamond Hole
Brand: HBGB
Price: 1 USD

Quality Building Material Iron Plate Galvanized Expanded Metal Mesh Diamond Hole for sale

Brand Name : HBGB

Model Number : GB-0091

Certification : ISO 9001

Place of Origin : China

MOQ : 100 pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000 pcs or rolls per day

Delivery Time : 10-20 days

Packaging Details : on pallet or wooden case, or as customer's requirement

Product name : Expanded Steel Mesh

Raw material : iron plate, low carbon steel plate

Hole shape : Diamond, hexagonal

Finishing : galvanized

Processing Service : stretching

sample : available

Shape : panel or roll

Hole size : customized

Color : bright color

Usage : Fence ,decorative , filter mesh

Contact Now

Building Material Galvanized Iron Plate Expanded Metal Mesh Diamond Hole

Production introduction of Expanded wire mesh:

Expanded Metal Mesh is made from sheets of solid metal that are uniformly slit and stretched to create diamond shaped openings .It can be made from a wide range of materials, chiefly expanded steel mesh, aluminum expanded metal mesh, expanded stainless steel,expanded nickel and other metal , as steel reinforcement materials in petroleum, chemical industry and building decorations.

Thickness available from 0.5mm to 8mm.
Material: Low carbon steel wire, stainless steel wire.
Shape- ability :Expanded Mesh is strong and flexible for structural shaping of buildings. Mesh gives a controllable contour for surfaces including ceilings, wall panels, screens and columns.
Finish:Cleaning ,Anodizing ,Painting, Lacquering , Plastic Coating ,Galvanizing

Specifications of expanded metal mesh

specification	Mesh	size	Strand	size	strand rate	weight (kg/m2)	standard sizeL*S(mm) weight(kg/s)
specification	SWD	LWD	T	W	Expansion	weight (kg/m2)	914*1829	1219*2438	1524*3048
100	13.8	100	4.5	5.0	1.38	25.6	42.8	76.1	119
200	17.6	100	4.5	5.0	1.76	20.1	33.6	59.7	93.4
300	21.9	100	4.5	5.0	2.19	16.1	26.9	47.8	74.8
400	17.8	100	6.0	7.0	1.27	37.1	62.0	110	172
500	21.3	100	6.0	7.0	1.52	31.0	51.8	92.1	144
600	25.2	100	6.0	7.0	1.80	26.2	43.8	77.9	122
700	25.5	100	8.0	9.0	1.42	44.2	73.9	131	205
800	29.2	100	8.0	9.0	1.62	38.8	64.9	115	180
The special specification can be done according to the requests of the customers

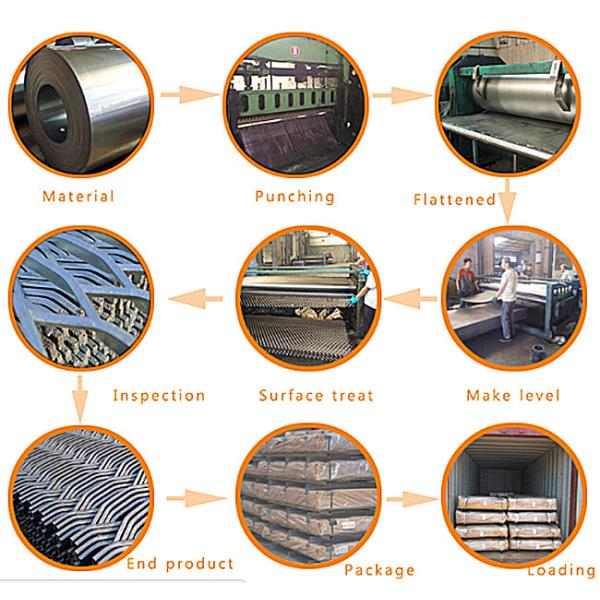

Expanded Metal Wire Mesh Process Flow

Material
Punching
Flattenedl
Make level
Surface treat
Inspection
End product
Packaget
Loading

Building Material Iron Plate Galvanized Expanded Metal Mesh Diamond Hole

Applications:

1.Aerospace: nacelles, fuel filters, air filters

2.Appliances: dish washer strainers, microwave screens, dryer and washer drums, cylinders for gas burners, water heaters and heat pumps, flame arrestors

3.Architectural: stairs, ceilings, walls, floors, shades, decorative, sound absorption

4.Automotive: fuel filters, speakers, diffusers, muffler guards, protective radiator grills

5.Hammer mill: screens for sizing and separating

6.Industrial equipment: conveyors, dryers, heat dispersion, guards, diffusers, EMI/RFI protection

7.Pollution control: filters, separators

8.Mining: screens

9.Security: screens, walls, doors, ceilings, guards

10.Sugar processing: centrifuge screens, mud filter screens, backing screens, filter leaves, screens for dewatering and desanding, diffuser drainage plates
